DC Motors

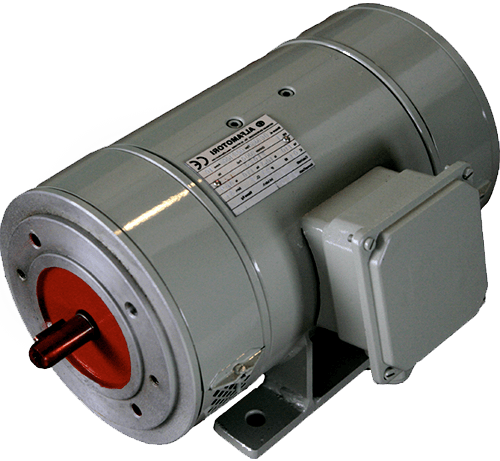

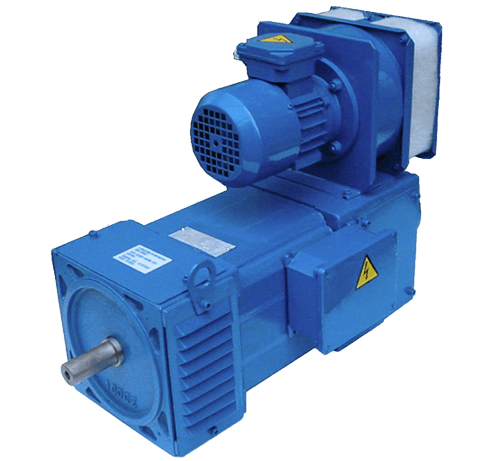

KS Series

• Power range from 0,4 kW to 860 kW
• Available torque: from 9Nm to 13.700Nm
• Standards CEI2-3 e IEC 34-1
• Wide range of mechanical and electrical adaptation
• Available supply voltage from 12V to 660V

DCR Series

• Power range from 0,3 kW to 500 kW
• 2 & 4 poles
• Standards: CEI2-3 e IEC 34-1
• Wide range of mechanical and electrical adaptation
• Available supply voltage from 12V to 660V

• Max torque at nominal speed until 300%
• Armature voltage available until 500V

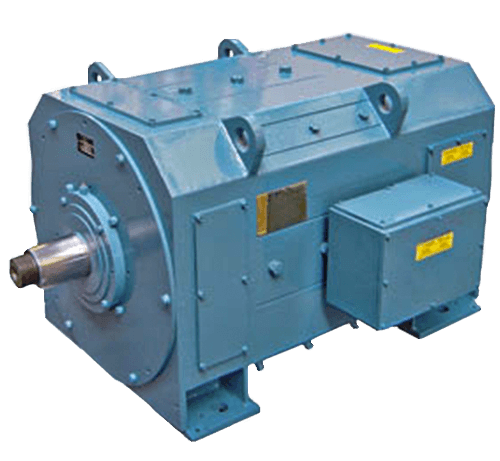

• Available frame: h= 802 – 803 – 804 – 806 – 808 – 810 – 812 – 814 – 816 – 818 (AISE standard)
• Available power from 7 to 187 kW
• Standards: IEC – CE
• Insulation class H with temperature rise limited to 110°C
• Available excitation circuit: series, compound or shunt

• NEMA frame: 185AT-4412ATZ
• Available power from 7,5 to 700 Hp (up to 2.600 Hp on request)
• 2 and 4 poles
• Fully laminated square frame
• Inch sizes
• Metric IEC frames on request
• Shunt or compound excitation windings

Type Lak 4112-6560

• Power: 7- 2000KW
• Torque : 40- 24500 Nm
• 4 e 6 poles
• Fully laminated
• Available size112, 132, 160, 180, 200, 225, 250, 280 315, 355, 400, 450, 500 e 560
• Standards : IEC, VDE, BS, CSA, NEMA
• NEMA datas and dimension on request (see catalogues)

We make special resistors to limit current during motor starting up.

These resistors are essential for DC motor powered by batteries.

Catalogues and drawings available on request for all series of DC motor
