Permanent Magnet DC Motors

The DC Servomotor with Permanent Magnets “M series” are available in many configurations, various nominal speed and several supply voltages

They generate high continous torque and high dynamics

The high constructive quality ensures an almost perfect rotation stability, and limits the oscillations to values of less than few RPM

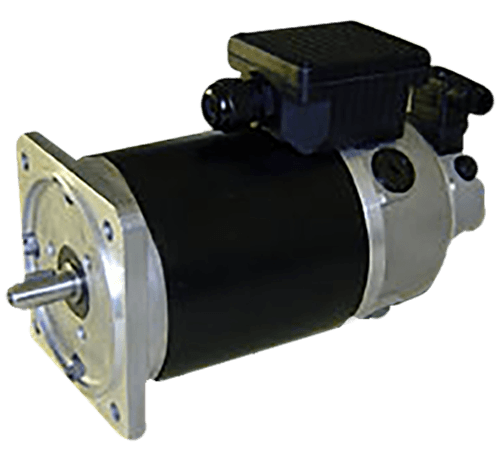

DC current servomotor with permanent magnet

  • Available stall torque up to 20 Nm
  • Availability of wide mechanical and fixing dimensions adaptations
  • Custom flanges, with shape and dimension on request
  • Mounting detail IM B5 or IM B14 (CEI EN 60034-7)
  • Ferrite magnets or rare earth metals
  • Insulation class F (CEI EN 60034-1)
  • Temperature rise class F (CEI EN 60034-1)
  • Protection degree IP44 or IP55
  • Cooling IC 410 (CEI EN 60034-6)
  • Tachodynamo 10V / 20V / 60V at 1000rpm
  • Encoder
  • Electromagnetic brakes
